Product details:

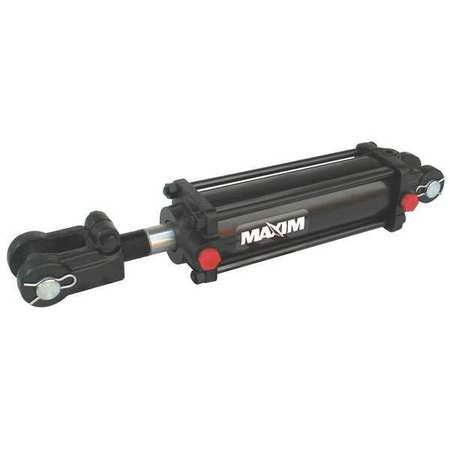

Hydraulic Cylinder, Double Acting Tie Rod Style, Bore Dia 3 In, Stroke 6 In, Rod Dia 1-1/4 In, Retract 16-1/4 In, NPT Port 1/2 In, Max Pressure 2500 PSI, Temp Range -20 to 220 F, Ductile Iron Piston Material, High Tensile Strength Piston Rod, Precision Honed Steel Tubes, Polypak Rod Seal, High Tensile Tie Rods, Black Finish, Includes Pins and ClipsFeaturesTie Rods: High Tensile - Finish: Black - Rod Seal: Polypak - Dimension E (In.): 1.625Includes: Pins and Clips - Type: Double Acting Tie Rod - Stroke (In.): 6Temp. Range: -20 to 220Piston Rod: High Tensile Strength - Piston Material: Ductile Iron - Dimension B (In.): 2.625Dimension A (In.): 0.189Item: Hydraulic Cylinder - Tubes: Precision Honed Steel - Max. Pressure (PSI): 2500Retract (In.): 16-1/4Pin Dia.: 1 inch - NPT Port (In.): 1/2Port Size (NPT): 1/2 inch - Dimension C (In.): 1.125Rod Dia. (In.): 1-1/4Bore Dia. (In.): 3Dimension D (In.): 2.125
